Solutions

Turnkey Solutions

Solutions

From food factory planning to primary packaging, inspection, case packing and robotic palletizing, Dookoo delivers executable integrated solutions.

01 · Integrated Solution

End-of-line Packaging Solutions

Efficient & Cost-savingComprehensive & IntelligentAdvance New-quality Productivity

The solution considers existing resources, production requirements, future growth and line changes, then allocates them effectively to achieve optimized production goals.

End-of-line Packaging Solutions

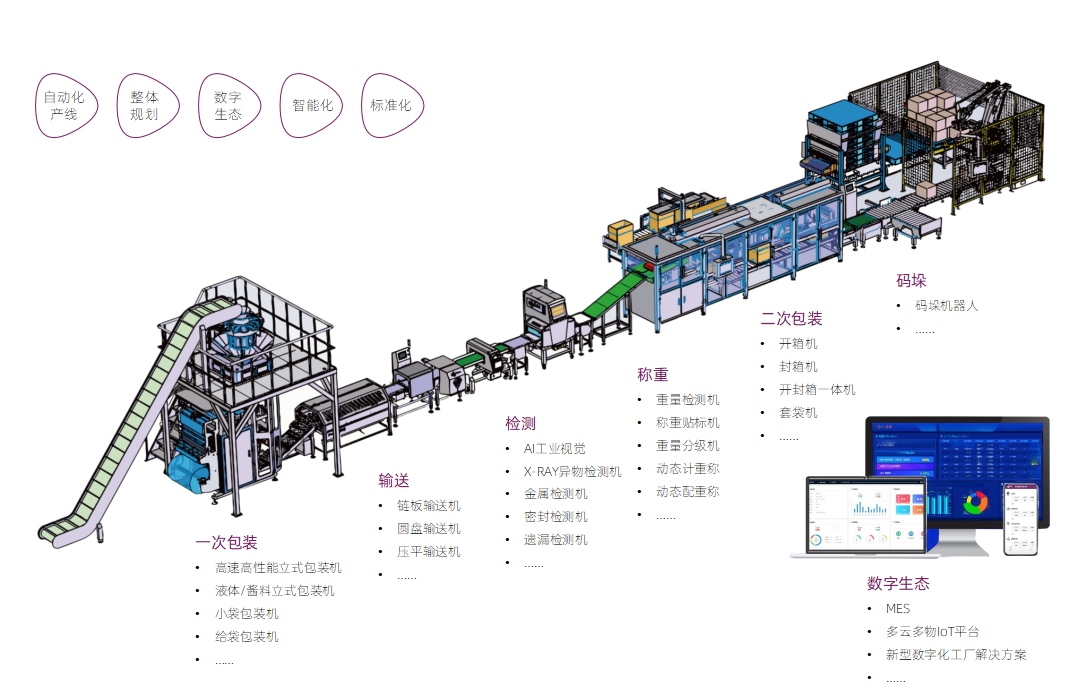

End-of-line packaging solution overview
01.1

Counting & Weighing Packaging

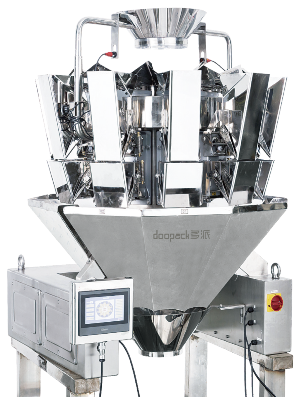

DPW 10-head / 14-head Combination Weigher

DPW 10-head / 14-head Combination Weigher

Product advantages

Designed for accurate weighing and packaging of fragile bulk products, including snacks, confectionery, nuts, beans, fruit and vegetables, dumplings and herbs.

  • Fully welded stainless-steel construction with rounded corners minimizes dust accumulation.
  • A modular control system simplifies maintenance and reduces operating costs.
  • Professional digital weighing modules improve stability and accuracy.
  • IP65-rated protection supports wet and dusty production environments.
  • Sequential discharge reduces blockages, with independently adjustable vibration amplitude.
  • Multilingual operating system.
01.2

Primary Packaging Solutions

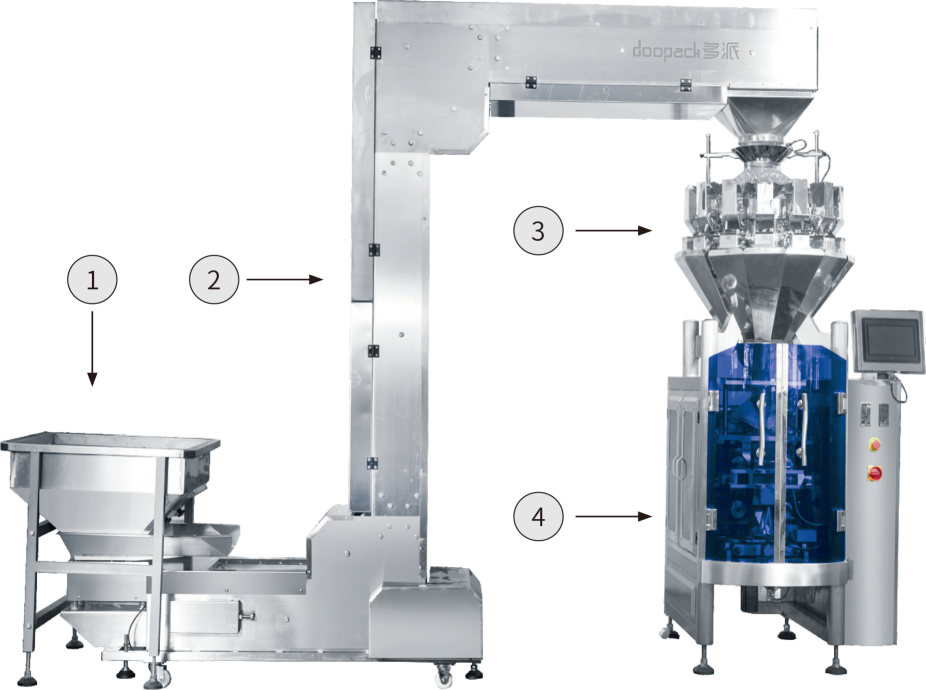

DP320 Packaging Solution

DP320 Packaging Solution

Vibrating feeder | Z-type elevator | 14-head combination weigher | DP-320 packaging machine

Speed10–80 bags/min
Bag size(W)60–150 × (L)50–200mm；二次拉膜长 300mm
Bag stylesPillow, vertical, perforated and linked bags
Hopper volumemax. 700ml
Max. film width320mm
Air consumption0.3m³/min, 0.6MPa

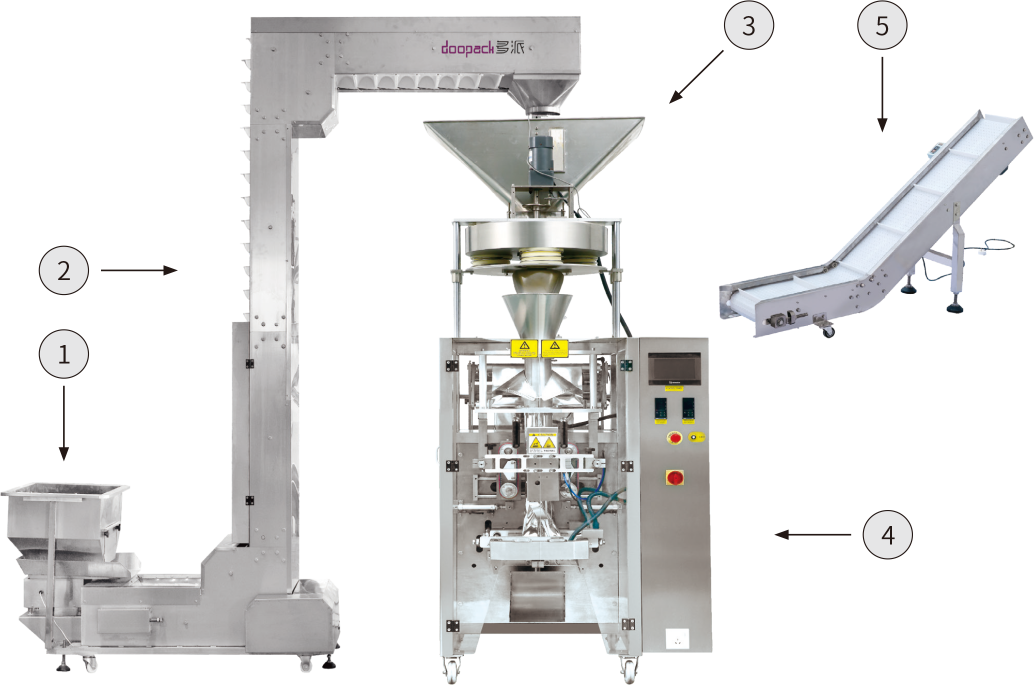

DP420 Cup-dosing Packaging Solution

DP420 Cup-dosing Packaging Solution

Vibrating feeder | Z-type elevator | Volumetric cup doser | DP-420 packaging machine | Finished-product conveyor

Cup capacity50–1500ml
Adjustment range±15%
Speed10–55 cycles/min
Power250W / speed controller

Typically paired with a DP-420 vertical packaging machine for rice or lightweight puffed food packs up to 1kg.

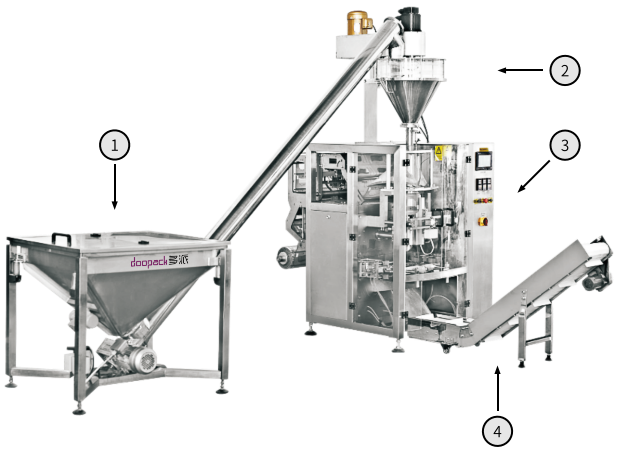

DP520 Packaging Solution

DP520 Packaging Solution

Screw feeder | Auger filler | DP-720 packaging machine | Finished-product conveyor

Multiple auger sizes can be integrated with DP-320, DP-420, DP-520 and DP-720 vertical packaging machines for ultra-fine powders, combining dosing, bag making, sealing, printing and counting.

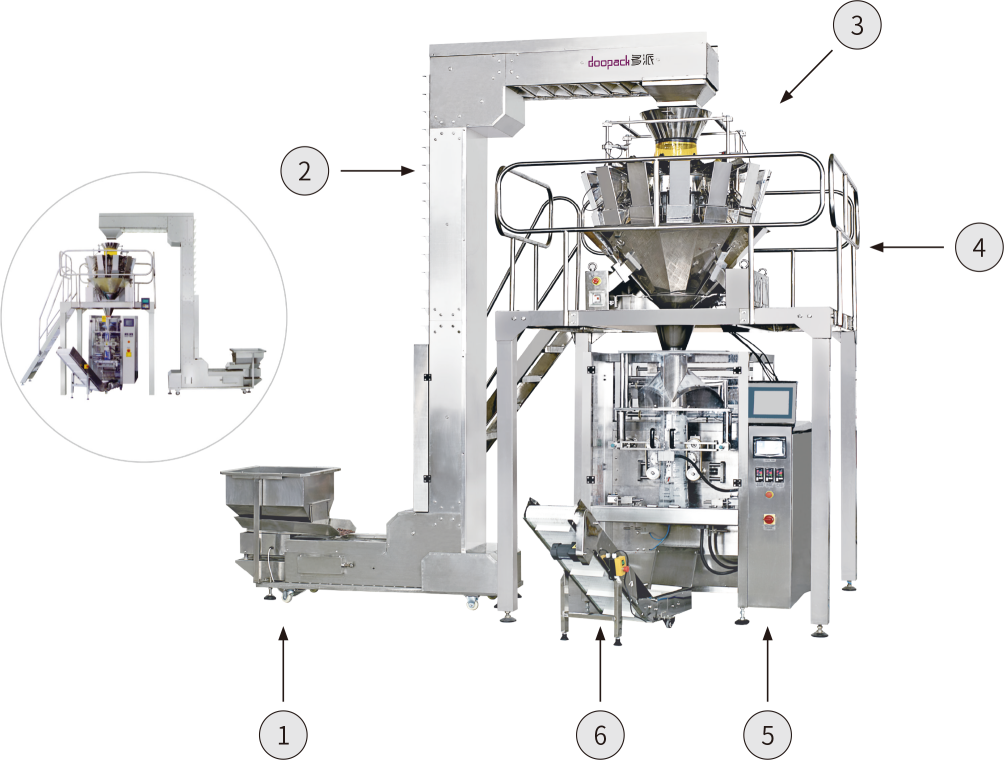

DP720 Packaging Solution

DP720 Packaging Solution

Vibrating feeder | Z-type elevator | 14-head combination weigher | Platform | DP-720 packaging machine | Finished-product conveyor

Speed15–50 bags/min
Bag size(W)110–350 × (L)100–420mm；二次拉膜长 600mm
Bag stylesPillow, vertical and perforated bags
Dosing rangemax. 4000ml
Max. film width720mm
Air consumption0.8m³/min, 0.8MPa
01.3

Secondary Case-packing Solutions

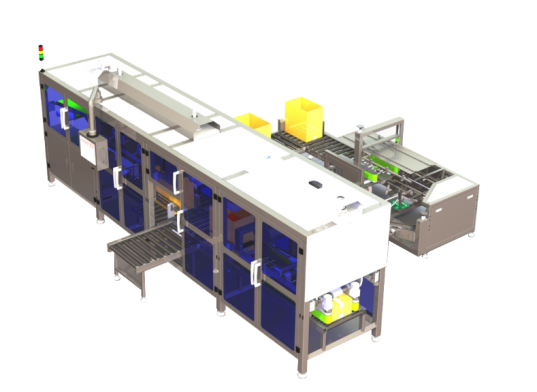

Product Collation & Case-packing Solution

Product Collation & Case-packing Solution

Product advantages

  • Automates stacking and case packing for bagged products.
  • Supports stacking at 60 bags/min and case packing up to 12 cases/min, depending on the format.
  • Custom configurations support a broad range of carton sizes.
  • Fast format changeover with a washdown-ready stainless-steel structure.
Carton size (max.)600 × 450 × 350mm
Carton size (min.)400 × 300 × 200mm
Case-packing speed12 bags/min (depending on format)

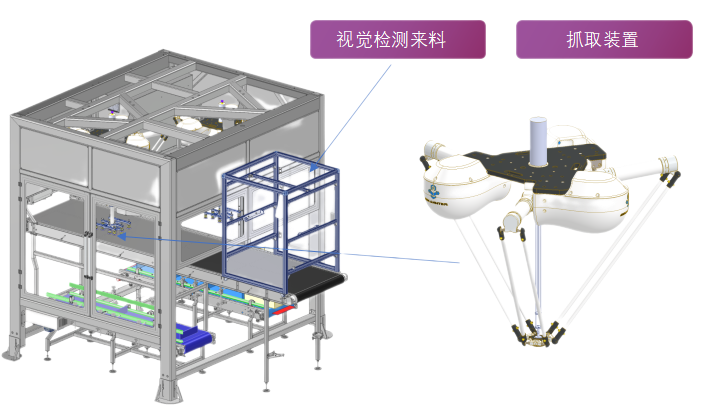

Delta Robot Case-packing Solution

Delta Robot Case-packing Solution

Product introduction

  • A high-speed parallel mechanism enables fast, precise pick-and-place.
  • Products are arranged in preset matrices such as 3×4 or 5×5 and placed smoothly into cartons, gift boxes or trays.
  • One robot can handle multiple product sizes, shapes and case formats.
  • Integrated vision supports presence, orientation and label inspection.
ModelDK3PM-2200-P25
Maximum payload25kg
Positioning accuracy0.05mm
Rotational accuracy0.05º
01.4

Cartoning Solutions

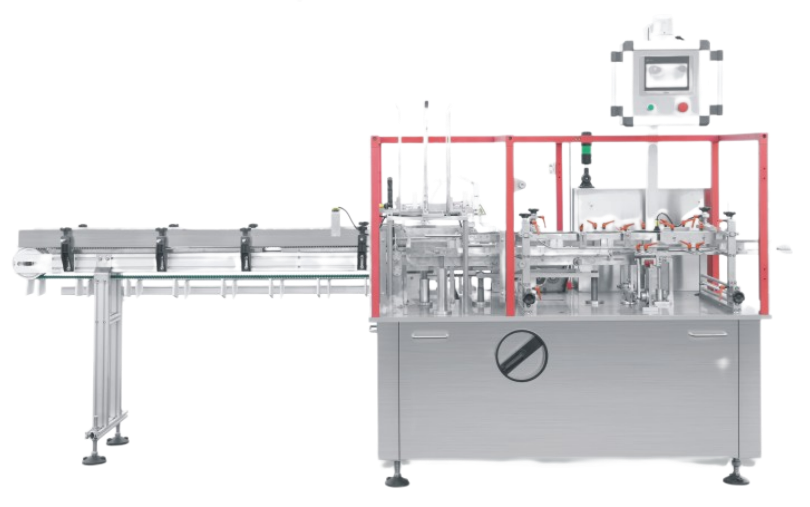

Automatic Cartoning Solution

Automatic Cartoning Solution

Product advantages

  • Automated cartoning for production lines and multiple product forms.
  • Stable cam-driven operation with flexible size adjustment.
  • Rotary encoder synchronization makes operation straightforward.
  • Reduces labor while improving packing and cartoning quality.
Film Sealing & Shrink-wrapping Solution

Film Sealing & Shrink-wrapping Solution

Product introduction

The fully automatic vertical shrink wrapper provides stable, strong and clean seals with integrated safety protection. Its lifting cutter and adjustable seal line support 20–45 packs per minute and integration into unmanned lines.

01.5

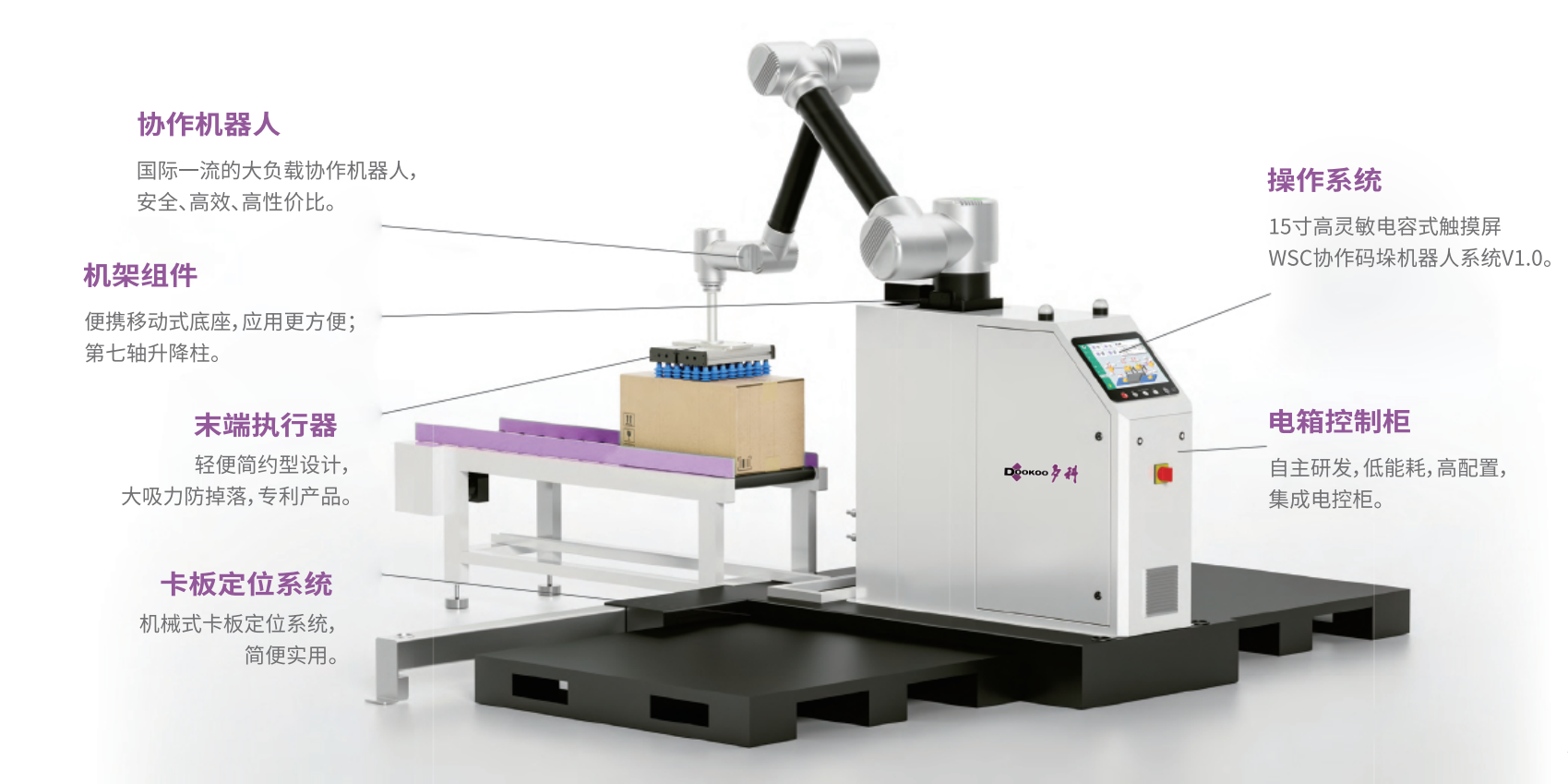

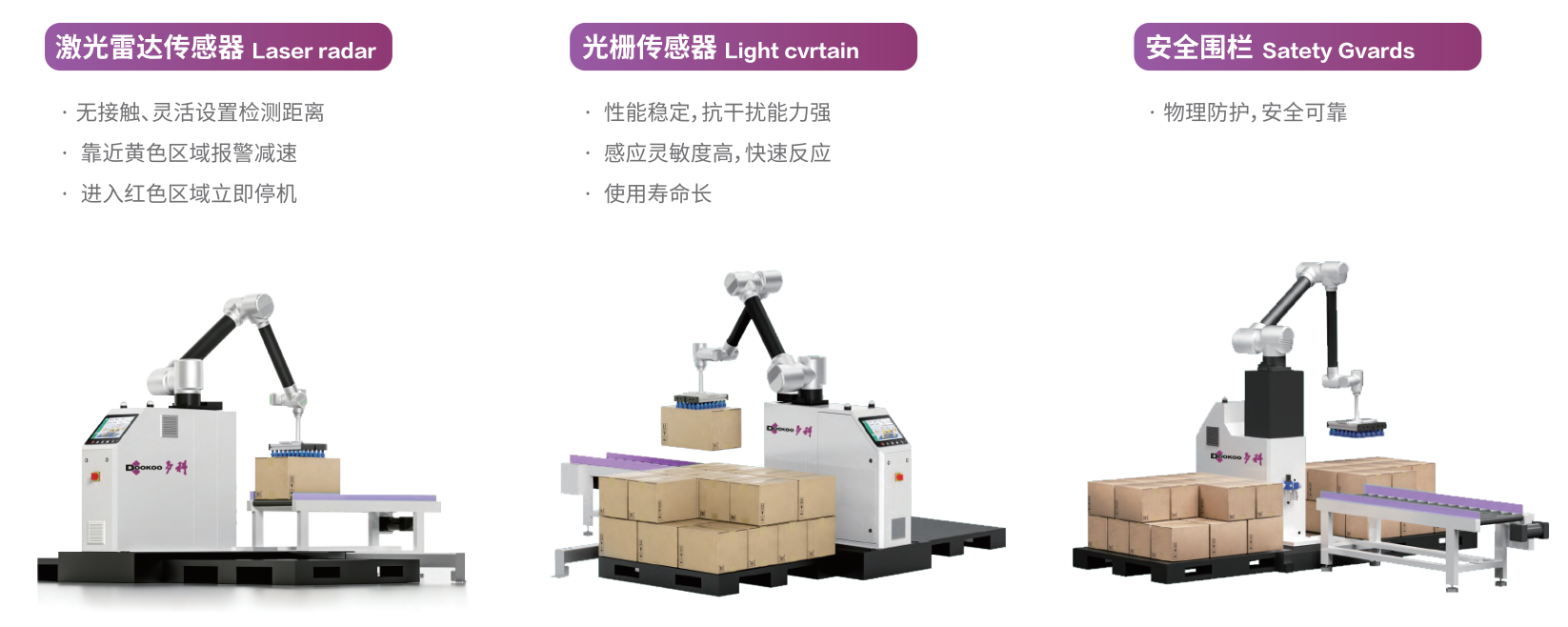

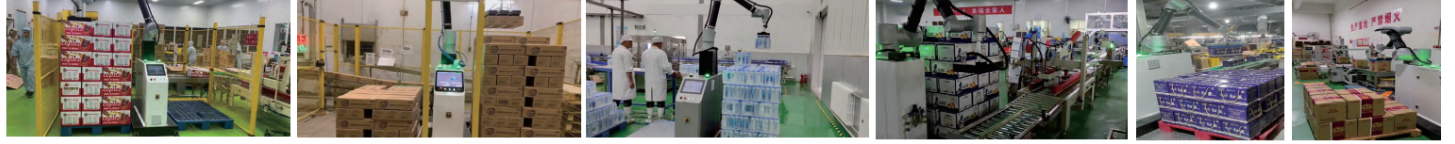

Robotic Palletizing Solution

Robotic Palletizing Solution

Robotic Palletizing Solution

Product introduction

  • Easy programming: efficient graphical programming without specialist coding skills.
  • Safe and stable: industrial-grade sensors deliver reliable operation.
  • Flexible deployment: a compact integrated design minimizes floor-space requirements.
  • Flexible production: rapidly switch among human–robot, dual-robot and multi-robot workflows.
Robotic Palletizing Solution
Robotic Palletizing SolutionRobotic Palletizing Solution

02 · FOOD FACTORY

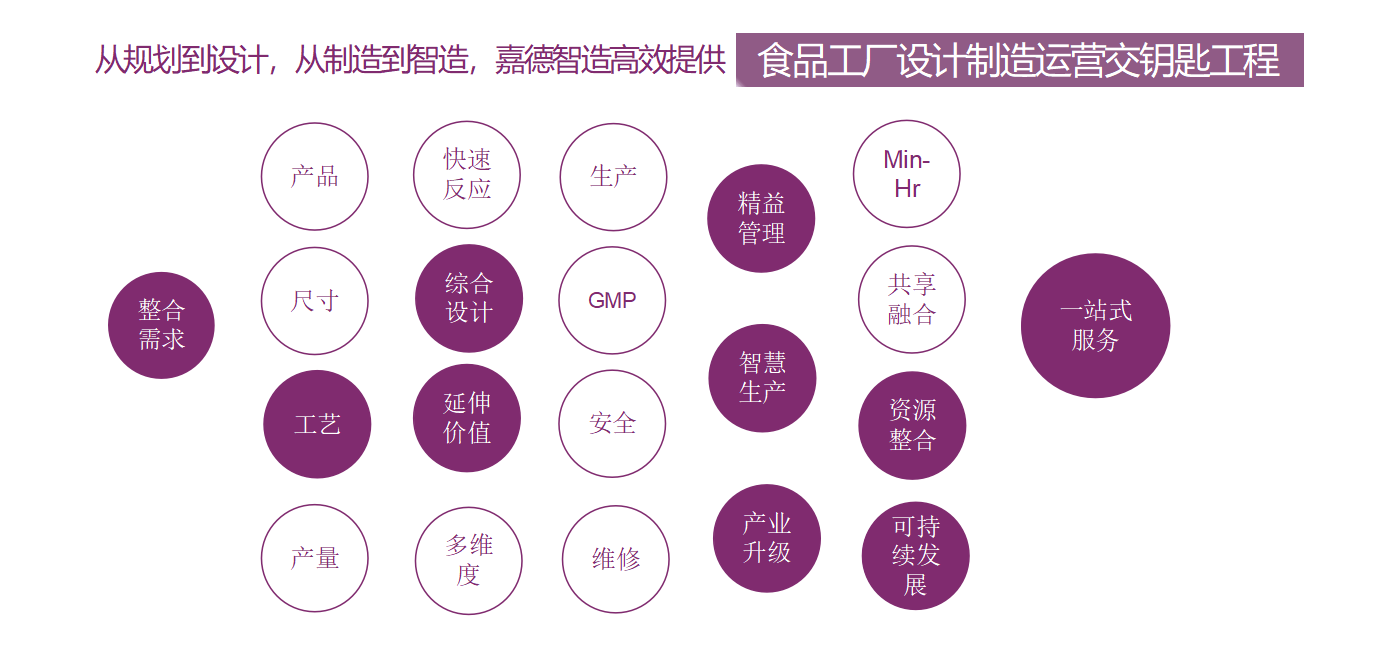

Food Factory Planning & Construction

An executable integrated path covering food factory planning, engineering, functional layout and operational objectives.

Food Factory Planning & Construction

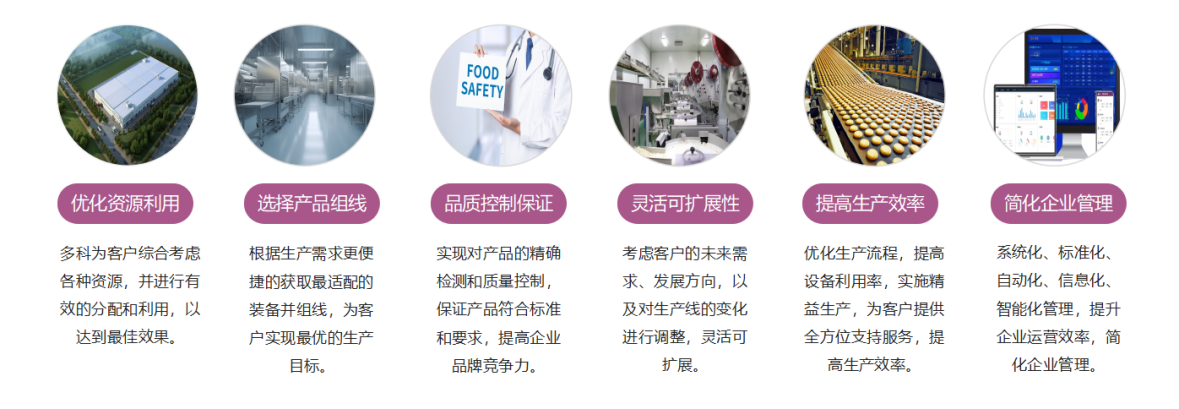

Food factory planning benefits

03 · CENTRAL KITCHEN

Chinese Cuisine Standardization / Central Kitchen Industry Chain

Connect raw-material preparation, processing, primary packaging, quality inspection, secondary packaging and warehousing for standardized production.

Chinese Cuisine Standardization / Central Kitchen Industry Chain

Process Planning & Design

Main building planning | Workshop production layout | Supporting equipment layout

Engineering Management

Critical control points | Civil drawing coordination | Flooring | Ventilation | Clean partitions | Cold chain | Utilities

Construction Supervision

Food-production civil works | Concealed utilities | Food-grade flooring | Trenches and drainage

Integrated Construction

Anti-slip flooring and utilities | Open-drain works | Clean workshop environments | Production cold chain

Equipment Integration

Raw-material preparation | Prepared foods | Rice and flour products | Thermal processing | Packaging

04 · INDUSTRIES

Industry-specific Solutions

Explore applicable scenarios and contact us for recommendations based on your product, capacity, plant and process constraints.

More supported industries

Dairy Products

End-of-line Packaging

Hygiene Products

Molded Pulp

Powder Processing

Pet Food

Delivery Process

Need to discuss your line or factory goals in more detail?

From throughput and space to quality control and automation depth, we can help shape the right project path.
